How does a direct acting pneumatic thermostat work?

The direct acting pneumatic thermostat, or DA, is responsible for increasing the pressure in the branch line as temperature is increased. On the other hand, the reverse acting pneumatic thermostat, or RA, is responsible for decreasing the pressure in the branch line as temperature is increased.

Regarding this, what is a direct acting thermostat?

direct-acting thermostat. A pneumatic thermostat designed so that a rise in room temperature will increase the control air pressure to the controlled device.

Furthermore, why do thermostats hiss? Pneumatic thermostats often hiss when they're telling your AC or heating system to turn on or off. So, the frequent hissing noises coming from your thermostat are simply the metallic strips adjusting the air pressure inside those tubes.

Also to know, how do pneumatic controls work?

A pneumatic control system uses compressed air as a method of control for HVAC systems. Compressed air is carried via copper and plastic tubes from a controller to a control device, usually a damper or valve actuator. This system uses the compressed air as the communication method.

How does a thermostat work in a building?

Overview. A thermostat exerts control by switching heating or cooling devices on or off, or by regulating the flow of a heat transfer fluid as needed, to maintain the correct temperature.

What is a Direct Acting Valve?

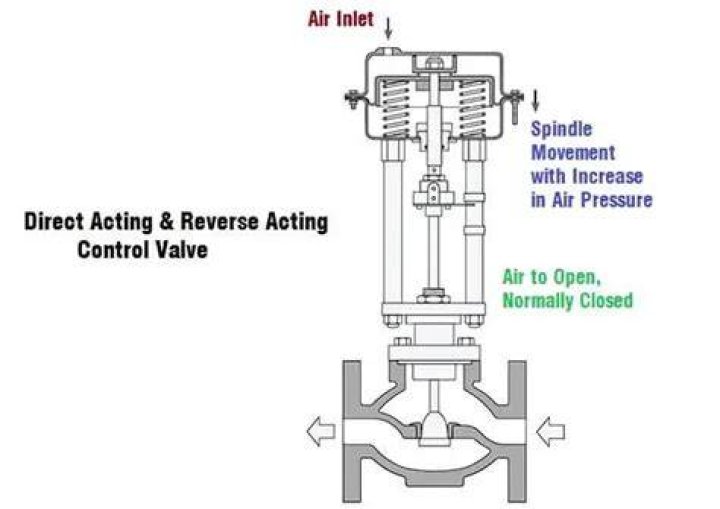

Direct Acting Control Valves & Reverse Acting Control Valves. In a direct acting actuator, an increase in the pneumatic pressure applied to the diaphragm extends the valve stem (for a normally seated valve this will close the valve and is called 'air to close').

What is direct acting controller?

Direct action means that the controller output rises if the measurement increases. Indirect (reverse) action means that the controller output drops when the measurement rises. If an increase in error increases the controller output, it's direct-acting.

How does a VAV controller work?

Variable air volume – how it worksThe VAV controller receives the flow signal based on the differential pressure from the pick-up device mounted in the duct. Pressure changes in the duct system caused e.g. by filters or influences from other rooms, are compensated automatically, a true pressure independent system.

What is a reverse acting thermostat?

Definition. reverse-acting thermostat rate. (Noun) A thermostat that decreases or switches off its output as its set-point is reached. The thermostat that controls a typical house furnace is reverse-acting since it switches the furnace OFF or de-energises as the set-point is reached.

What is direct acting reverse acting controller?

A direct acting controller is one whose output tends to increase as the measurement signal increases. A reverse acting controller is one whose output tends to decrease as the measurement signal increases.

How does a pneumatic VAV box work?

Typically, a VAV box consists of a few simple parts: the damper, the controller/actuator, and perhaps a coil for heating and cooling via electricity or water pumps. As the air passes through these boxes the actuator modulates the damper position which allows different amounts of airflow into the zone.

How does a pneumatic temperature sensor work?

Pneumatic Temperature Controllers use both indirect and direct output pressure during operation. Furthermore, the direct output pressure lengthens the stainless tube allowing the thermostat diaphragm assembly to move toward the seat. This much like the indirect output pressure does.

What is pneumatic control valve?

Pneumatic control valve. A valve which regulates the flow of a fluid. It is remotelyoperated as the correcting unit of an automatic control system. The actuator is operated by compressed air.

How do I calibrate my Honeywell thermostat?

How Do You Calibrate a Honeywell Digital Thermostat? In order to calibrate a Honeywell digital thermostat, check the thermostat's accuracy with a tube thermometer, make sure the thermostat is clean inside the face plate, and make sure that the thermostat is level with the ground.

How do you unlock a Johnson Control thermostat?

How to Unlock a Johnson Controls Thermostat

Press and hold the "C/F" button on the front of the thermostat until the configuration menu appears—roughly 8 seconds.
Tap "C/F" until "Lockout" appears on the screen.
Press the "Up" or "Down" buttons until "Lockout Level 0" appears on the screen.
Wait roughly 8 seconds without pressing any buttons.

How do you calibrate a pneumatic valve?

Pneumatic control valve positioner calibrationTo begin the control valve calibration, first, you need to supply 4 milliamps (mA) to set the zero position. Then, you'll supply 20 mA and adjust the span using the flapper. When you finish the span adjustment, check the zero. You may need to do it again.

How do you adjust a Johnson Control thermostat?

Lock Instructions for Johnson Controls Thermostats

Press the center key on the thermostat and hold it for about eight seconds.
Press the "Up/Down" arrow keys to highlight "Password 0," which is the default password.
Press the "Mode" key.
Press the center key and release it repeatedly to scroll through the configuration settings until "Lockout" is displayed.

Why air is used in control system?

Engaging the distributor cam with the follower,after giving start signal. Control air is used for venting the punture valve of the fuel pump after the stop switch is deactivated. Control air is used to open the automatic air starting valve. Control air is used for ahead and astern signal to the pnematic cylinder.

How do air cylinders work?

Pneumatic cylinder(s) (sometimes known as air cylinders) are mechanical devices which use the power of compressed gas to produce a force in a reciprocating linear motion. The piston is a disc or cylinder, and the piston rod transfers the force it develops to the object to be moved.
